Utility-Scale Battery Storage Solution for Grid Applications
Utility-Scale Battery Storage Solution for Grid Applications

Products

Utility-Scale Containerized Battery Energy Storage System

Features:

· Utility-Scale Energy Capacity
Available in multi-megawatt-hour configurations to support large-scale energy storage deployments.

· Advanced Liquid Cooling Technology
Intelligent thermal management improves battery consistency, extends service life, and enhances operational efficiency.

· Integrated Containerized Design
Factory-assembled architecture reduces installation complexity and accelerates project deployment.

· Comprehensive Safety Protection
Multi-layer protection including thermal monitoring, fire detection, fire suppression, gas detection, and explosion relief systems.

· Long-Life LFP Battery Technology
Built on proven lithium iron phosphate chemistry with high safety performance and long lifecycle operation.

· Smart Energy Management
Integrated monitoring and communication systems support remote operation, diagnostics, and fleet management.

Detailed Description

Product Description

The HGES X Series is Higre Energy’s next-generation containerized battery energy storage solution designed for utility-scale energy storage, renewable energy integration, microgrid projects, and grid stabilization applications.

Built with advanced 314Ah lithium iron phosphate (LFP) battery technology and intelligent liquid cooling architecture, the system delivers exceptional safety, long service life, and superior operational efficiency in demanding environments.

Available in 10MWh and 20MWh configurations, the HGES X Series integrates battery systems, thermal management, fire protection, communication systems, and energy management functions into a highly modular platform that simplifies deployment and reduces total project costs.

Designed for large-scale renewable energy plants, utility infrastructure, industrial power systems, and energy trading projects, HGES X Series enables operators to maximize renewable energy utilization, improve grid stability, and increase energy asset profitability.

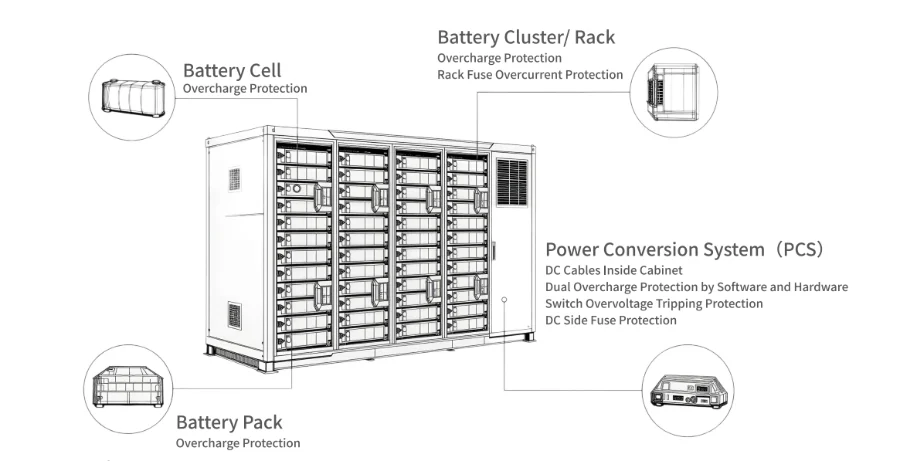

Higre energy HGES X Series energy storage system container for utility BESS project

Product advantages

Reduce Levelized Cost of Storage (LCOS)

High-efficiency architecture and long battery life improve long-term project economics.

Accelerate Project Deployment

Containerized design minimizes on-site construction and commissioning time.

Improve Renewable Energy Utilization

Store excess solar and wind generation for dispatch during peak demand periods.

Strengthen Grid Reliability

Support frequency regulation, voltage stabilization, peak shaving, and reserve power applications.

Product Parameters

Model HG-ESS10030kWh-5000kW-2h HG-ESS20060kWh-5000kW-4h
Rated Power 1250kW*4
Maximum Power 1375kW*4
Battery Capacity 5015kWh*2 5015kWh*4
Maximum Effi.   99%
Cooling Method Intelligent Liquid Cooling
Communication RS485/Ethernet
IP Rating Battery compartment-IP55, Battery pack-IP65, High voltage Box-IP55
Operating Temp. -30℃~50℃
Fire Protection system Combustible gas detection,temperature monitoring,smoke detection,cabin-level aerosol fire suppression,explosion relief panel,ventilation system,water fire-fighting system
Standards UL/IEC

Application Scenarios

FAQs:

  • What battery technology does HGES X Series use?

    The system uses high-safety lithium iron phosphate (LFP) battery cells with advanced liquid cooling technology.

  • Is HGES X Series suitable for solar and wind projects?

    Yes. The system is specifically designed to support renewable energy integration, peak shifting, and energy dispatch optimization.

  • What safety features are included?

    The system incorporates gas detection, fire suppression, thermal monitoring, smoke detection, and explosion relief mechanisms.

  • Can the system support utility-scale grid services?

    Yes. HGES X Series can provide frequency regulation, peak shaving, voltage support, and energy arbitrage functions.
