Solar Pumping System

75kW–132kW Hybrid Solar Pump Inverter

  • High-precision MPPT with shadow scanning, efficiency over 99%.

  • Outdoor IP65 wall-mounted; -25°C to +60°C, high-altitude ready.

  • GPRS and wireless sensors enable mobile APP monitoring and control.

  • Grid/PV hybrid, PV priority, 24/7 supply, diesel remote control.

  • V/f and vector control, soft start/stop, PLC pressure/flow.

  • Comprehensive protections; USB/OTA upgrades; LCD monitoring/faults.

Detailed Description

Product advantages

Reduce Energy Costs for Large Water Projects

Significantly lowers operational expenses compared to conventional diesel-powered pumping infrastructure.

Improve Water Security

Ensures stable water delivery for agricultural production, livestock operations, and community water supply systems.

Support Sustainable Development Initiatives

Helps governments and project developers meet renewable energy and carbon reduction objectives.

Increase Infrastructure Investment Value

Long equipment lifespan and low operating expenses contribute to stronger long-term project economics.

Product Parameters

Model

HG-MD75kW-H

HG-MD90kW-H

HG-MD110kW-H

HG-MD132kW-H

PV Input Parameters

Max.DC Input Volt

900V

Recommended MPPT Volt.

250~850V

Max.MPPT Effi.

>99%

System

IP Rating

IP65

Operating Temp.

-25~60°C

Standards

EN 50178; IEC/EN 62109-1; IEC61800; UL(Applying)

Product Series Deployment

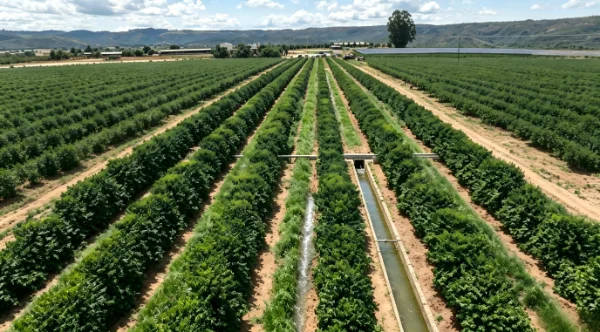

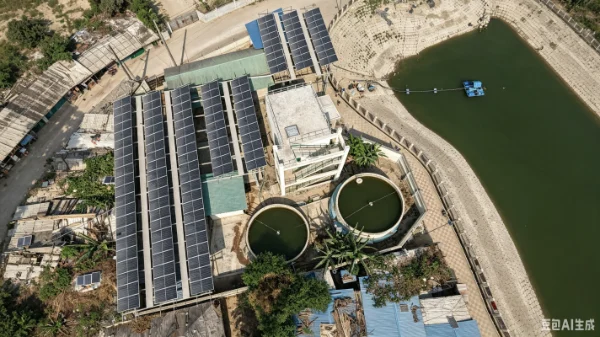

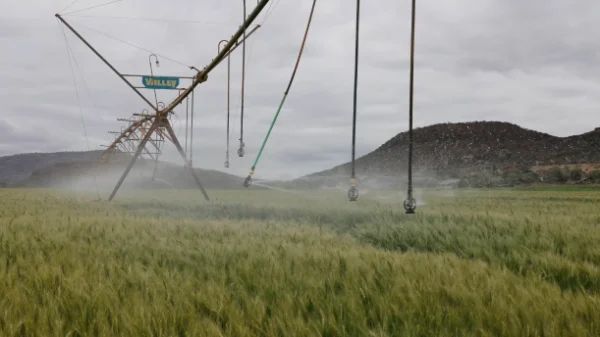

Application Scenarios

FAQs:

  • What types of projects typically use a 75kW–132kW solar pump inverter?

    This power range is commonly used for irrigation districts, municipal water systems, mining operations, large livestock farms, and industrial water transportation projects.

  • Can the inverter support high-head pumping applications?

    Yes. When matched with suitable pump configurations, the HydroSolar Mega Series is capable of supporting high-head and long-distance pumping requirements.

  • Is the system suitable for remote infrastructure projects?

    Yes. Hybrid operation allows integration with solar PV, diesel generators, utility grids, and future battery storage systems, making it ideal for remote locations.

  • Can multiple pumping stations be managed from one platform?

    Yes. Through Higre WSS Cloud and the Solar Pump Group Controller, operators can centrally monitor and manage multiple pumping assets.

  • How does this series improve project sustainability?

    By maximizing solar energy utilization and reducing fossil fuel dependence, the system lowers operating costs and environmental impact over the project lifecycle.
