Features：
1500V DC Architecture
High-voltage PV architecture designed for utility-scale and large commercial solar projects.
Multiple independent MPPT inputs provide flexible PV array configuration and improved energy harvesting.
Up to 99.9% maximum efficiency helps maximize solar energy conversion and project yield
IP66 / NEMA 4X enclosure protection supports demanding outdoor PV environments.

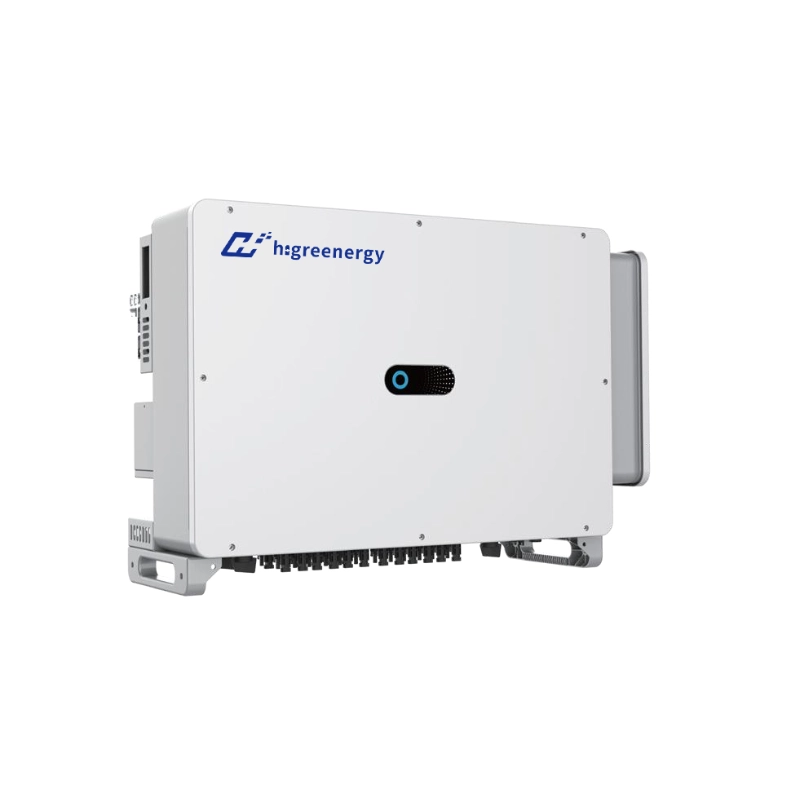

Higre Energy’s utility-scale string inverter is designed for high-performance grid-connected solar PV applications, combining multi-MPPT architecture, high conversion efficiency and advanced grid support capabilities. With a 1500V DC architecture and 600V three-phase AC output, the inverter is designed to support utility-scale and large commercial PV projects in demanding operating environments.
Higre Energy develops core inverter technologies independently, focusing on efficient PCS and maxi. energy harvesting. Multi-MPPT helps improve energy yield under different string and operating conditions.
Engineered for North American Grid Requirements
Our engineering approach integrates advanced grid-support functions into the inverter platform, enabling responsive reactive power control, LVRT, HVRT and power ramp-rate control for grid-connected PV applications.
Designed for Harsh Operating Environments
Product development focuses on thermal management, enclosure protection and long-term outdoor reliability. The reference platform supports IP66/NEMA 4X protection, supporting demanding project environments.
Engineering Flexibility for Project Integration
Higre’s R&D-oriented product architecture is designed to support project-specific electrical configurations, system integration and future product customization.
| Parameter | Reference |
|---|---|
| Max. PV Voltage | 1500 Vdc |
| Independent MPPTs | CUSTOMIZED |
| Mppt Efficiency | 99.9% |
| Nominal AC Voltage | 600 V |
| Protection | IP66 |
| Cooling | Intelligent Air Cooling |
| Communication | RS485 / USB / Bluetooth;4G/Wifi(选配） |

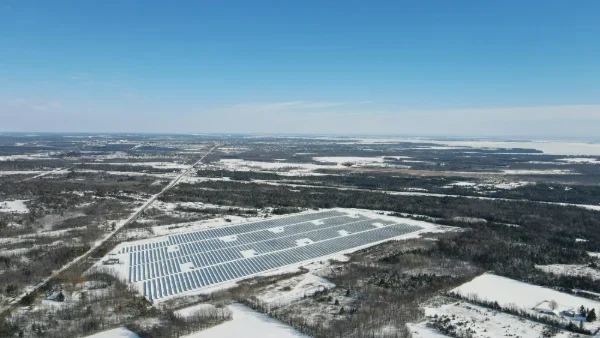

The inverter is designed for grid-connected solar PV applications, including utility-scale solar plants, large commercial and industrial PV systems, and renewable energy projects requiring high-voltage DC architecture and advanced grid support.
A 1500V DC architecture can support higher system voltage and flexible PV string configurations, helping EPCs optimize system design and reduce DC-side balance-of-system complexity in large PV projects.
Independent MPPT inputs allow different PV strings or array sections to operate at their optimal power points. This provides greater design flexibility and can improve energy harvesting when PV arrays have different orientations, conditions or operating characteristics
Higre Energy is an R&D-driven energy technology company with capabilities in independent product development and product customization. For qualified projects and partners, we can support product adaptation, technical integration, training and ongoing engineering support according to project requirements.
